Decoding All-Inclusive Car Audio Packages
When entering the world of mobile audio, beginners often search for car subwoofer wiring kits and mounting hardware included as a single, comprehensive bundle. The appeal is obvious: one box containing the power wire, ground wire, remote turn-on lead, RCA interconnects, fuses, and the necessary screws to secure the amplifier and enclosure. However, the automotive electrical environment is notoriously unforgiving. A vehicle's 12-volt DC system operates under extreme temperature fluctuations, high vibration, and significant electromagnetic interference (EMI). According to SAE J1128 standards for low-tension primary automotive cable, wiring must withstand under-hood heat and resist chemical degradation. Not all inclusive kits meet these rigorous OEM benchmarks. This guide breaks down the technical realities of bundled wiring kits, helping you identify quality components, properly size your conductors, and execute a safe, professional-grade installation.
The Material Trap: OFC vs. CCA Conductors
The most critical hidden variable in any wiring kit is the conductor material. Budget-friendly kits almost exclusively use Copper-Clad Aluminum (CCA), while premium kits utilize Oxygen-Free Copper (OFC). Aluminum is significantly less conductive than copper. To compensate for the higher resistance, CCA wire must be sized up by at least one to two AWG (American Wire Gauge) steps to safely carry the same current as pure copper. When high current passes through undersized CCA wire, resistance generates excessive heat, leading to voltage drop at the amplifier terminals and, in worst-case scenarios, melted insulation or electrical fires. Furthermore, the dissimilar metals in CCA (aluminum core, copper coating) are prone to galvanic corrosion at the termination points, especially in the humid environment of a vehicle trunk or cabin.
| Feature | Oxygen-Free Copper (OFC) | Copper-Clad Aluminum (CCA) |
|---|---|---|
| Conductivity | 100% (Baseline) | ~60% of Copper |
| Heat Dissipation | Excellent (Runs cooler) | Poor (Prone to heat buildup) |
| Corrosion Resistance | High (Solid copper core) | Low (Galvanic corrosion risk) |
| Flexibility | High (Stranded pure copper) | Moderate (Aluminum is stiffer) |
| Recommended Use | Professional/High-Current Installs | Low-Wattage/Budget Installs Only |
AWG Sizing Chart for Subwoofer Amplifiers
Selecting the correct wire gauge is dictated by the total RMS wattage of your amplifier and the total length of the wire run (from the battery positive terminal to the amplifier, and back to the chassis ground). Relying on peak wattage ratings will result in undersized wiring. Always calculate based on continuous RMS output. For runs exceeding 16 feet, it is highly recommended to step up one AWG size to mitigate voltage drop.
| Total System RMS Wattage | Recommended OFC Wire Gauge | Recommended CCA Wire Gauge | Maximum Inline Fuse Rating |
|---|---|---|---|
| 0 - 400 Watts | 8 AWG | 4 AWG | 40 Amps (AGU/Mini-ANL) |
| 400 - 1000 Watts | 4 AWG | 2 AWG | 80 Amps (ANL) |
| 1000 - 2000 Watts | 2 AWG or 1/0 AWG | 1/0 AWG | 150 Amps (ANL) |
| 2000+ Watts | 1/0 AWG or 2/0 AWG | 2/0 AWG or Dual Runs | 250+ Amps (Class T/ANL) |
Power Routing and Firewall Penetration
The power wire (universally red in these kits) must be routed from the vehicle's battery to the amplifier. This requires passing through the vehicle's firewall. Never drill blindly through the firewall, as you risk puncturing the brake booster, HVAC lines, or OEM wiring harnesses. Locate an existing OEM rubber grommet. Use a piece of stiff wire or a dedicated fish tape to pierce a small slit in the grommet and pull the 4 AWG or 8 AWG red power wire through. Critical Safety Rule: An inline AGU or ANL fuse holder must be installed on the power wire within 18 inches of the battery's positive terminal. This fuse protects the entire length of the wire run from shorting to the chassis and causing a vehicle fire, a principle heavily emphasized in Crutchfield's comprehensive car audio installation guides.
Establishing a True Chassis Ground
The ground wire (black) completes the circuit. A common beginner mistake is bolting the ground ring terminal over paint, carpet, or undercoating. The vehicle's chassis acts as the return path to the battery's negative terminal. If the connection is poor, the amplifier will draw current through the RCA shield cables, resulting in severe alternator whine and potential head unit damage. To create a proper ground:
- Locate a solid, unpainted metal bolt on the chassis or seatbelt tower within 3 feet of the amplifier.
- Use 80-grit sandpaper or a wire wheel to strip away all paint, primer, and rust down to bare, shiny steel.
- Crimp an M6 or M8 closed-end ring terminal onto the black ground wire using a hex-crimper, then seal it with adhesive-lined marine heat shrink.
- Bolt the terminal tightly to the bare metal. Apply a dab of dielectric grease over the connection to prevent future oxidation and galvanic corrosion.
Remote Turn-On and Signal Routing
The remote turn-on wire is typically a thin 18 AWG blue or blue/white striped wire. This wire carries a low-current 12V signal from the head unit to the amplifier's 'REM' terminal, telling the amp to power up when the stereo is turned on. Never route RCA signal cables and the remote wire parallel to the heavy-gauge power wire. The high current flowing through the power wire generates an electromagnetic field that will induce a 60Hz hum or alternator whine into the RCA interconnects. Route the power wire down the driver's side of the vehicle, and the RCA/speaker/remote wires down the passenger side.
Utilizing the Included Mounting Hardware

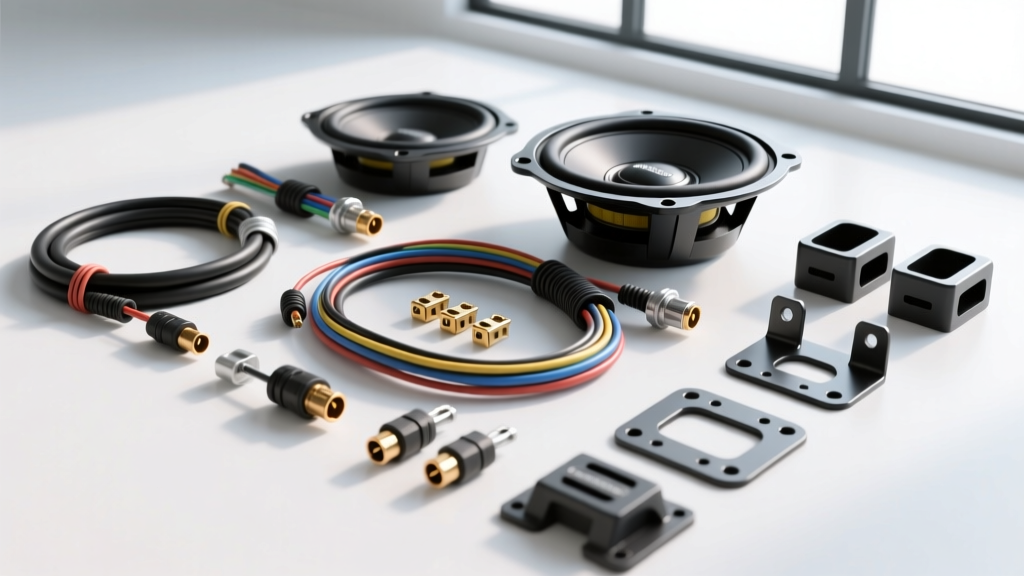

When you purchase car subwoofer wiring kits and mounting hardware included as a bundle, the hardware usually consists of self-tapping metal screws for the amplifier and standard wood screws for the enclosure. While self-tapping screws work for mounting an amplifier to a metal trunk floor or a custom aluminum amp rack, they are insufficient for securing heavy subwoofers to MDF (Medium Density Fiberboard) enclosures. The constant excursion and vibration of a subwoofer will quickly strip wood screws out of MDF. Instead, upgrade your mounting strategy by using T-Nuts (typically 1/4'-20 or 5/16'-18 thread size). Drill the appropriate pilot hole in the MDF baffle, hammer the T-Nut into the front of the baffle, and use machine screws to secure the subwoofer from the front. This creates a mechanical lock that will never strip, ensuring an airtight seal which is vital for accurate bass reproduction.
Troubleshooting the 'No Sound' Scenario
If your system fails to power on after installation, do not immediately assume the amplifier is defective. Use a digital multimeter (DMM) to perform a systematic voltage check. Set your DMM to DC Volts. With the vehicle off and the head unit on, measure the voltage at the amplifier's B+ and GND terminals. You should read between 12.0V and 12.6V. Next, measure the voltage at the REM terminal; it should also read 12V. If B+ has 12V but REM reads 0V, your remote turn-on wire is disconnected or blown at the head unit. If B+ reads below 11V, you have a severe voltage drop caused by a poor ground connection or undersized CCA power wire. For detailed electrical troubleshooting and wiring diagrams, referencing Engineering ToolBox AWG specifications can help you verify if your wire run is suffering from excessive resistance based on its length and gauge.
