The Evolution of the Motorcycle Wiring Diagram
When planning a custom build, resto-mod, or complex repair, the motorcycle wiring diagram is your primary roadmap. However, not all electrical architectures are created equal. The traditional OEM wiring harness—designed for mass production, modular assembly, and dealer-level diagnostics—differs radically from modern solid-state custom harnesses. Understanding the structural and schematic differences between these systems is critical for selecting the right components, wire gauges, and routing topologies for your specific motorcycle.
This guide compares traditional OEM wiring layouts (using Honda and Harley-Davidson benchmarks) against modern solid-state controllers like the Motogadget mo.unit. We will break down AWG sizing, DIN 72552 terminal standards, connector types, and failure modes to help you choose the optimal electrical foundation for your build.

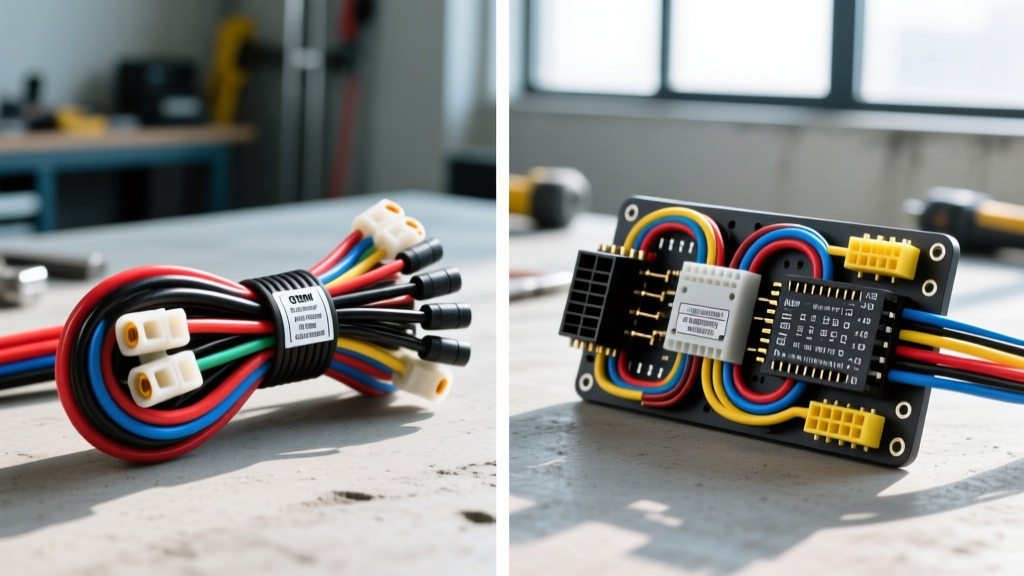

System Architecture Comparison: OEM vs. Solid-State
Before diving into the schematics, it is essential to understand how the physical hardware dictates the layout of the motorcycle wiring diagram. OEM systems rely on distributed mechanical relays and physical fuses, while modern custom systems centralize power distribution using MOSFETs and microcontrollers.
| Feature | OEM Harness (e.g., Honda CB / Harley Sportster) | Solid-State (e.g., Motogadget mo.unit) | Universal Analog Custom Kit |
|---|---|---|---|
| Main Power Feed | 10 AWG to 8 AWG (Battery to Starter/Fuse Box) | 8 AWG (Single heavy feed to mo.unit) | 12 AWG (Distributed via inline glass fuses) |
| Switching Mechanism | Mechanical 30A/40A Relays (High current to handlebar) | Internal MOSFETs (Low current trigger to handlebar) | Mechanical Relays mounted under seat |
| Grounding Topology | Distributed (Multiple frame ground points) | Centralized (Single heavy ground to engine block) | Distributed (Relies on frame conductivity) |
| Diagram Complexity | High (Multi-page, color-coded, connector pinouts) | Low (Simplified logic gates, minimal wire runs) | Medium (Standard relay logic, inline fusing) |
| Connector Types | Sumitomo HM 090/250, Molex MX150 | Screw-terminals, Deutsch DTM, or direct solder | Spade terminals, bullet connectors |
Decoding the OEM Motorcycle Wiring Diagram
OEM manufacturers design wiring harnesses to be assembled quickly on a factory line and serviced by technicians using standardized diagnostic trees. If you are reading a factory motorcycle wiring diagram from a Japanese or American V-Twin manufacturer, you will encounter specific color codes and gauge standards dictated by SAE J1128 Low Tension Primary Cable specifications.
Wire Color Codes & Gauge Standards
- Honda / Yamaha (Japanese Standard): Solid Green is universally Ground (31). Black is Switched 12V (15). Red is Battery 12V (30). White/Yellow are dedicated to the Stator and Regulator/Rectifier charging circuits.
- Harley-Davidson (Milwaukee Standard): Black is Ground. Red/White or Gray often denotes the CAN-bus or serial data lines on post-2014 models. Orange is typically accessory/switched power.
- AWG Sizing: OEM diagrams typically specify 14 AWG (approx. 2.0mm²) for headlights and high-draw lighting circuits, 18 AWG (0.75mm²) for instrument clusters and ECU sensor triggers, and 10 AWG (5.0mm²) for the main ignition switch feed and stator outputs.
The Hidden Bulk of OEM Connectors
A major drawback of the OEM motorcycle wiring diagram is the sheer volume of intermediate connectors. To allow the harness to be split during frame assembly, OEMs use multi-pin Sumitomo or Molex blocks. While great for factory assembly, these plastic housings trap moisture, leading to terminal oxidation and voltage drop—a common failure mode in older sportbikes and cruisers exposed to the elements.
Analyzing the Solid-State Motorcycle Wiring Diagram
When you transition to a digital controller like the Motogadget mo.unit blue, the motorcycle wiring diagram is radically simplified. The mo.unit replaces the fuse box, mechanical relays, turn signal flasher, and alarm system with a single digital block.
Pinout & Routing Advantages
In a solid-state diagram, high-current wires never travel to the handlebars. The handlebar switches only carry low-current trigger signals (typically 18 AWG to 22 AWG) back to the mo.unit. The mo.unit then switches the high-current load (12 AWG to 14 AWG) directly to the headlight or starter solenoid via internal MOSFETs.
- Input Pins (Triggers): Require minimal current (mA). This allows you to use ultra-thin, flexible silicone wires inside the handlebars, drastically improving steering head clearance and aesthetics.
- Output Pins (Loads): Provide clean, pulse-width modulated (PWM) power. This is critical for modern LED lighting, as the mo.unit's digital diagram eliminates the need for load-resistors typically required when swapping incandescent bulbs for LEDs.
- Thermal Protection: Instead of a physical fuse melting, the digital diagram relies on the mo.unit's internal temperature and current monitoring to shut off a circuit if a short occurs, resetting automatically once the fault is cleared.
Selection Guide: Which Diagram & Harness Fits Your Build?
Choosing between an OEM replacement harness and a custom solid-state setup depends entirely on your project goals, budget, and fabrication skills.
1. The Concours Restoration (Choose OEM)
If you are restoring a 1970s Honda CB750 or a 1990s Yamaha FZR to factory specifications, you must use the OEM motorcycle wiring diagram and harness. Judges and purists look for the correct Sumitomo connectors, OEM cloth-braided loom wrapping, and factory color codes. Attempting to shoehorn a digital controller into a concours build will deduct points and complicate future sales.
2. The Cafe Racer / Tracker (Choose Solid-State)
For heavily modified subframes and minimalist builds, physical space is at a premium. A solid-state controller allows you to hide a single, compact aluminum box under the seat or inside the frame backbone. The simplified motorcycle wiring diagram means fewer wires routing through the steering neck, reducing the risk of chafing and short circuits.
3. The Heavy Touring Bagger (Choose Hybrid / OEM+)
Touring motorcycles with heated grips, auxiliary radar, audio amplifiers, and multiple CAN-bus modules require massive current capacity. Stick to the OEM harness architecture, but upgrade the main power feeds from 10 AWG to 8 AWG TXL (Thin-wall cross-linked) wire, and add a secondary auxiliary fuse block wired directly to the battery with an 80A MegaFuse.
Common Failure Modes & Diagnostic Decision Tree
Regardless of whether you are following a factory schematic or a custom digital layout, electrical faults generally stem from poor termination or voltage drop. Use this diagnostic tree when your physical build does not match the theoretical motorcycle wiring diagram.
Voltage Drop Troubleshooting Tree
- Symptom: Headlight dims at idle but brightens when revving the engine.
- Check 1: Measure AC voltage at the stator connector (3 Yellow wires on Honda/Yamaha). Should be >50V AC at 2000 RPM. If low, stator is failing.
- Check 2: Check the Regulator/Rectifier ground. OEM diagrams route this to the frame. If frame paint is blocking the ground, run a dedicated 12 AWG ground wire directly to the engine case.
- Symptom: Starter solenoid clicks, but engine does not turn over (Custom Solid-State Setup).
- Check 1: Measure voltage at the mo.unit starter output pin while pressing the start button. If it reads 12V+ but the starter doesn't spin, the fault is in the starter motor or the heavy 8 AWG cable from the battery.
- Check 2: If the output pin reads 0V, the mo.unit is in thermal protection mode or the low-current trigger wire from the handlebar switch has a broken ground.
- Symptom: Intermittent loss of tail light over bumps.
- Fix: This is almost always a backed-out terminal in a multi-pin connector. Inspect the motorcycle wiring diagram for the specific pin number, extract the terminal using a pin removal tool, and squeeze the locking tangs before reinserting. Never rely on friction alone; ensure the locking tab clicks.
Final Thoughts on Wire Insulation and Crimping
When executing any motorcycle wiring diagram, the wire insulation type is just as critical as the AWG size. Always use TXL or GXL (cross-linked polyethylene) wire. These insulation types are rated for 125°C to 150°C and resist melting when routed near exhaust headers or engine blocks. Avoid standard PVC wire (THHN/THWN) found in hardware stores, as it becomes brittle under engine vibration and melts under high ambient heat.
Finally, abandon solder-only connections for harness splices. Solder creates a rigid point in a flexible wire, leading to stress fractures under motorcycle vibration. Follow OEM and Haynes Motorcycle Electrical Basics guidelines by using open-barrel copper crimps (like those from Tyco/TE Connectivity) paired with heat-shrink tubing featuring an internal adhesive lining to seal out moisture. A perfectly executed diagram is only as reliable as its weakest crimp.
